Setcom RCB-18KW 18' Radio Cable - Kenwood
Radio interface for 25-pin accessory port connector
Compatible with Kenwood TK-NX700, NX800, NX900, TK-NX5000, NX-5700, NX5800, VM5000, and VM7000
18 foot length
12 month warranty
Installation Notes
This system requires the radio to be programmed as follows:
(Refers to the 25-pin Accessory Connector on Radio)
“Extended Function” dialog box, “AUX” tab in programming software:
- MIC IN: Pin 6, “MI2”, default gain setting
- PTT: assigned to Pin 12, “AUXIO7”
- COR (Muting): Pin 20, “AUXIO5", ACTIVE LOW

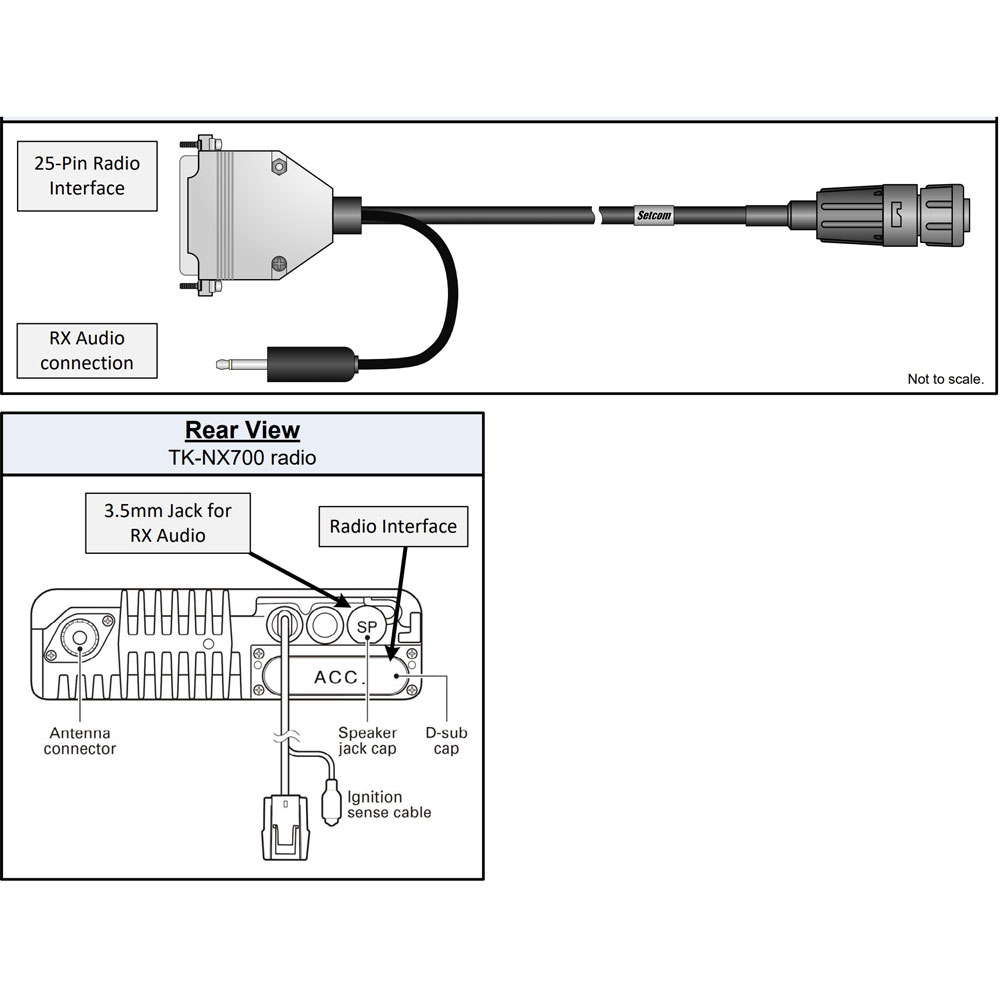

Interface for DB25 Accessory Connector on RF Deck
Uses 3.5mm speaker jack for RX audio
